[GO TO] Warpface Double Chevron Introduction

Warpface Double Chevron [W] Pattern

Go to: [figure-1]

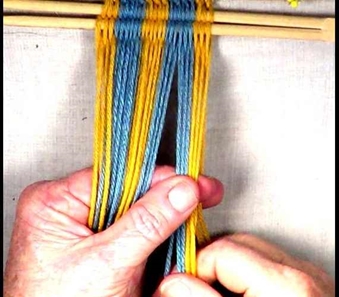

Row 1 [part-1]

Find the middle of the [part 1]of Row 1.
    [NOTE] The warp strands that are to the right of middle of the right hand half of the work piece make up the [part 1] shed of Row 1.

    [NOTE] The [part 1] shed is made up of the warp strands between the middle of the right hand half and the right hand edge of the work piece.
[Figure-1] click here to see video

Top of page Next: figure 2

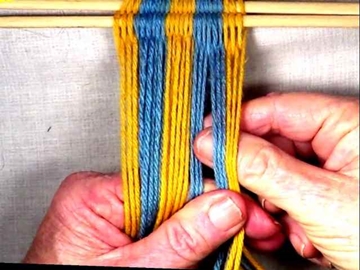

Row 1 [part-1]

Select the[part 1]weft strand of the Row 1 [part 1] shed.
  • [NOTE]The warp strand that is to the left of the middle of the right hand half of the work-piece.
[Figure-2] click here to see video

Previous: figure 1 Next: figure 3

Row 1 [part-1] Pass [part-1] weft strand through [part-1] shed.

  • Pass the [part 1] weft strand through the Row 1 [part 1] shed to the right hand edge of the work piece.
[Figure-3] click here to see video

Previous: figure 2 Next: figure 4

Row 1 [Part 1] Secure weft strand.
  • Place the [part 1] weft strand over the index finger of the right hand.

    Place the adjacent [part 1] warp strand under the index finger of the right hand.

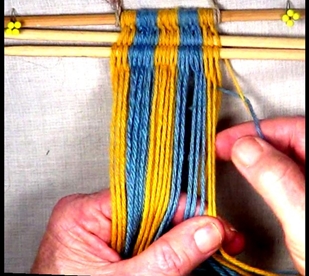

[Figure-4] click here to see video

Previous: figure 3 Next: figure 5

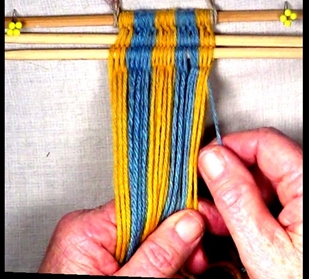

Row 1
[Part 1]Reverse the first part of the shed.

  • Transfer the [part 1] shed to the index finger of the right hand.

  • Starting on the left hand side of the [part 1]shed, move one warp strand at a time to the idex finger of the left hand.
    • [NOTE] Each warp strand moves from the shed layer it is in the right hand to the opposite shed layer in the left hand.

  • Set the weave by using the index finger as a beater and pulling the [part 1] weft strand snug.

  • Return the [part 1] weft strand to the warp bundle.

    [NOTE]Reversing the shed by working toward the free end of the weft strand helps to prevent the weft strand from being seen between the warp strands.
[Figure-5] click here to see video

Previous: figure 4 Next: figure 6

Row 1 [Part 2]

Select the Row 1 [part 2] weft strand.
    Transfer the [part 1] shed warp strands to the index finger of the right hand.

    The warp strand that is on the left hand edge of the [part 1] shed is selecte as the Row 1 [part 2] weft strand.
[Figure-6] click here to see video

Previous: figure 5 Next: figure 7

Row 1 [Part 2]

Pass the [part 2] weft strand through the Row 1 [part 2] shed.
    [NOTE] Use the third and fourth fingers of the right hand to maitain some tention on the [part 1] warp strands.

    [NOTE] Use the thumb, the index finger, and the second fingere of the right hand to minipulate the [part 2] shed warp strands.

    [NOTE] The [part 2] shed is made up of the warp strands between the middle of the right hand half and the middle of the work piece.

    Place the [part 2] weft strand under the index finger of the left hand.
[Figure-7] click here to see video

Previous: figure 6 Next: figure 8

Row 1 [Part 2]

Secure the [part 2] weft strand.

    Place the adjacent [part 2] warp strand over the index finger of the left hand.
[Figure-8] click here to see video

Previous: figure 7 Next: figure 9

Row 1 [Part 2]

Reverse the [part 2] shed.

    Transfer the [part 2] shed to the index finger of the left hand.

    Start on the right hand side of the [part 2] shed, move one warp strand at a time to the idex finger of the right hand.

      [NOTE] Each warp strand is moved from the shed layer it is in the left hand to the opposite shed layer in the right hand.

    Set the weave by using the index finger as a beater and pulling the weft strand snug.

    The [part 2] weft strand becomes a warp strand in the [part 3] Row 1 shed.

    [NOTE]The [part 3] Row 1 shed is from the middle of the work piece to the middle of the left hand half of the work piece.
[Figure-9] click here to see video

Previous: figure 8 Next: figure 10

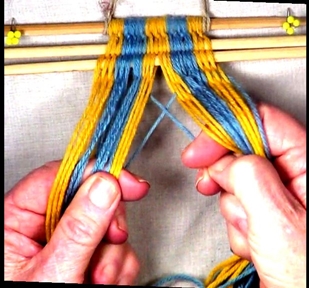

Row 1 [Part 3] Pass the part three weft strand through the part three shed.
  • Find the middle of the left hand side of the work piece.

  • The warp strand that is to the left of the middle of the left hand half of the work-piece is selected as the [part 3] Row 1 weft strand.

  • Pass the [part 3] weft strand through the [part 3] shed to the middle of the work piece.
[[Figure-10] click here to see video

Previous: figure 9 Next: figure 11

Row 1 [Part 3] Secure the [part 3] weft strand.
  • Place the adjacent [part 3] warp strand over the index finger of the right hand.
[Figure-11] click here to see video

Previous: figure 10 Next: figure 12

Row 1 [Part 3] Reverse the [part 3] shed.

    Transfer the [part 3] shed to the right index finger.

    Start on the left hand side of the [part 3] shed, move one warp strand at a time to the idex finger of the left hand.

    [NOTE] Each warp strand is moved from the shed layer it is in the right hand to the opposite shed layer in the left hand.

    [OBSERVE] The [part 2] weft strand and the [part 3] weft strand cross each other at the center of the work-piece.
    After the weft strands cross they become warp strands.
[Figure-12] click here to see video

Previous: figure 11 Next: figure 13

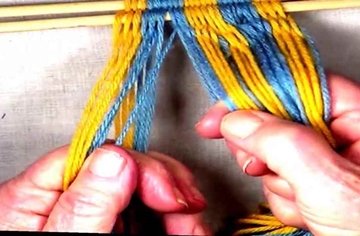

Row 1 [Part 4]Select the part 4 weft strand.
    Set the weave by using the index finger as a beater and pulling the weft strand snug.

    Transfer [part 3]shed to the index finger of the right hand.

    [NOTE]The [part 4] Row 1 shed is from the middle of the left hand side of the work piece to the left hand side of the work piece.

    Select the warp strand that is on the right hand edge of the [part 4] Row 1 shed as the [part 4] Row 1 weft strand.
[Figure-13] click here to see video

Previous: figure 12 Next: figure 14

Row 1 [Part 4]
    Pass the [part 4] weft strand through the [part4] Row 1 shed.

    Transfer the fourth part of the row 1 shed to the index finger of the right hand.
[Figure-14] click here to see video

Previous: figure 13 Next: figure 15

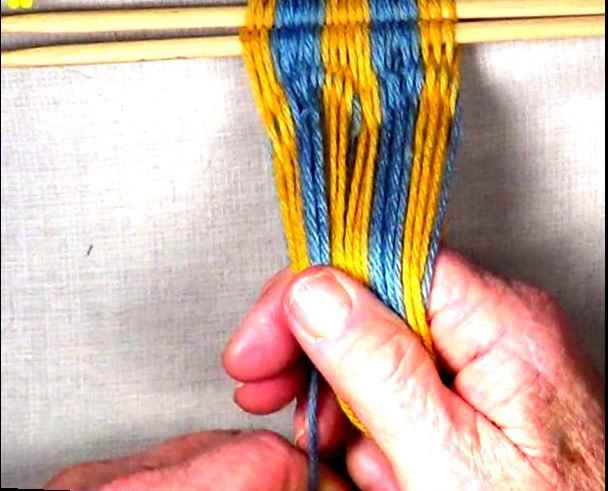

Row 1 [Part 4] Reverse the fourth part of the shed.

    Transfer the [part 4] shed to the left index finger.

    Start on the right hand side of the [part 4] shed, move one warp strand at a time to the idex finger of the right hand.

    [NOTE] Each strand moves from the shed layer it is in the left hand to the opposite shed layer in the right hand.

    The [part 4] weft strand becomes a warp strand in the [part 4] Row 1 shed.
[Figure-15] click here to see video

Previous: figure 14 Next: figure 16

Row 1 [Part 4]

[Part 4]Set the weaving of row 1.

    Use an index fingers as a beater.

    Pull the layers of the shed in opposite directions.

    Check to see that there are no loose warp strands.
[Figure-16] click here to see video

Previous: figure 15 Next: figure 17

Row 2

[Part 1] Start the weaving Row 2

    Identify the middle of the right hand half of the work piece.

    [Observe] The Row 1 [part 1] and the Row 1 [part 2] weft strads crossed each other at the middle of the right hand half of the work piece.
[Figure-17] click here to see video

Previous: figure 16 Next: figure 18

Row 2 [Part 1]

Select the weft strand for the [part 1] of the Row 2 shed. .

    The [part 2] warp strand is that is adjacent to the Row 2 [part 1] shed is selected as the Row 2 [part 1] weft strand.
[[Figure-18] click here to see video

Previous: figure 17 Next: figure 19

Row 2 [Part 1]

Pass the [part 1] weft strand through the [part 1] Row 2 shed.
.
    Transfer the [part 1] shed to the index finger of the left hand.

    Pass the [part 1] weft strand through the [part 1]shed to the right hand edge of the work piece.
[Figure-19] click here to see video

Previous: figure 18 Next: figure 20

Row 2 [Part 1]

[Part 1]Secure the [part 1] weft strand.
    Place the [part 1] weft strand over the right hand index figer.

    Place the adjacent [part 1] warp strand over the weft strand and then under the right hand indexfinger.


[Figure-20] click here to see video

Previous: figure 19 Next: figure 21

Row 2 [Part 1]

Reverse the [part 1] shed.

    Transfer the [part 1] shed to the right index finger.

    Starting on the left hand side of the [part 1] shed, move one warp strand at a time to the idex finger of the left hand.

    [NOTE] Each warp strand moves from the shed layer it is in the right hand to the opposite shed layer in the left hand.

    Set the [part 1] shed weave by using the index finger as a beater and pulling the [part 1] weft strand snug.

    Then the [part 1] weft strand is returned to the warp bundle.
[Figure-21] click here to see video

Previous: figure 20 Next: figure 22

Row 2 [Part 2]

Select the weft strand for the [part 2] Row 2 shed.

    [Observe] The Row 1 [Part 1] and Row 1 [Part 2] weft strads crossed each other at the middle of the right hand half of the work piece.

    Transfer the [part 1] shed to the index finger of the right hand.

    The warp strand that is on the left hand edge of the [part 1] shed is selected as the Row 2 [part 2] weft strand.
[Figure-22] click here to see video

Previous: figure 21 Next: figure 23

Row 2 [Part 2]

[Part 2]Secure the [part 2] weft strand.
    Place the [part 2]weft strand under the index finger of the left hand.

    Place the [part 2] warp strand that is to right of the weft strand over th index finger of the left hand.
[Figure-23] click here to see video

Previous: figure 22 Next: figure 24

Row 2 [Part 2]

[Part 2]Secure the [part 2] weft strand.
    Place the the [part 2] weft strand under the index finger of the left hand.

    Place the warp strand that is to right of th weft strand over th index fingerof the left hand.
[Figure-24] click here to see video

Previous: figure 23 Next: figure 25

Row 2 [Part 2]

Reverse the [part 2] shed.
    Transfer the [part 2] shed to the left index finger.

    Start on the right hand side of the [part 2] shed, move one warp strand at a time to the idex finger of the right hand.

    [NOTE] Each warp strand moves from the shed layer it is in the left hand to the opposite shed layer in the right hand.

    Set the weave by using the index finger as a beater and pulling the weft strand snug.

    The [part 2] weft strand becomes a warp strand in the [part 3] Row 2 shed.

    [NOTE] The [part 3] Row 2 shed is from the middle of the work piece to the middle of the left hand half of the work piece.

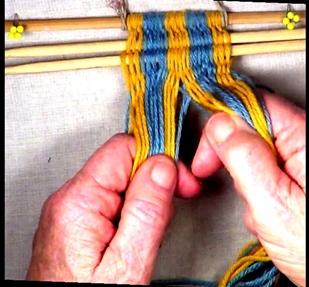

[Figure-25] click here to see video

Previous: figure 24 Next: figure 26

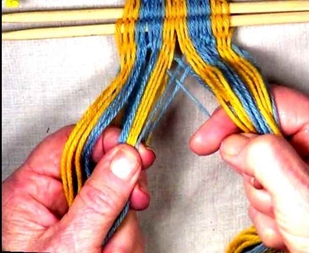

Row 2 [Part 3]

Pass [part 3] weft strand through shed to the middle of the work piece.
    Find the middle of the left hand half of the work piece.

    Select the warp strand that is to the left of the middle of the left hand half of the work-piece.

    [NOTE]This warp strand becomes the [part 3] weft strand for the [part 3] Row 2 shed.

    Pass the [part 3] weft strand through the [part 3]shed to the middle of the work piece.
[Figure-26] click here to see video

Previous: figure 25 Next: figure 27

Row 2 [Part 3]

[Part 3]Secure the [part 3] weft strand.
    Place the [part 3] weft strand under the index finger of the right hand.

    Place the adjacent [part 3] warp strand over the index fingerof the right hand.
[Figure-27] click here to see video

Previous: figure 26 Next: figure 28

Row 2 [Part 3]

[Part 3] Reverse the [part 3] Row 2 shed.

    Transfer the [part 3] shed to the right index finger

    Start on the left hand side of the [part 3] shed, move one warp strand at a time to the idex finger of the left hand.

    [NOTE] Each warp strand moves from the shed layer it is in the right hand to the opposite shed layer in the left hand.
[Figure-28] click here to see video

Previous: figure 27 Next: figure 29

Row 2 [Part 3]

[Part 4] Select the Row 2 [part 4] weft strand. .
    Transfer the [part 3] shed to the index finger of the right hand.

    [NOTE] The Row 2 [part 4] shed is from the middle of the left hand half of the work piece to the left hand edge of the work piece.

[Figure-29] click here to see video

Previous: figure 28 Next: figure 30

Row 2 [Part 4]

[Part 4]Pass the [part 4] weft strand through the Row 2 [part 4] shed.
    Transfer the Row 2 [part 4] shed to the index finger of the right hand.

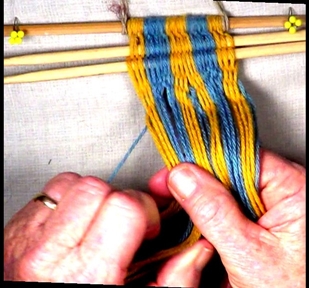

[Figure-30] click here to see video

Previous: figure 29 Next: figure 31

Row 2 [Part 4]

Reverse the [part 4] shed.

    Secure the [part 4] weft strand.

    Transfer the [part 4] shed to the left index finger.

    Starting on the right hand side of the [part 4] shed, move one warp strand at a time to the idex finger of the right hand.

    [NOTE] Each warp strand moves from the shed layer it is in the left hand to the opposite shed layer in the right hand.

    The [part 4] weft strand becomes a warp strand in the Row 2 [part 4] shed.
[Figure-31] click here to see video

Previous: figure 30 Next: figure 32

Row 2 [Part 4]

[Part 4]Finish weaving row 2.

    Set the weave for Row 2.

    Use an index fingers as a beater.

    Pull the layers of the shed in opposite directions.

    Check to see that there are no loose warp strands.

[Figure-32] click here to see video

Previous: figure 31 Next: figure 33

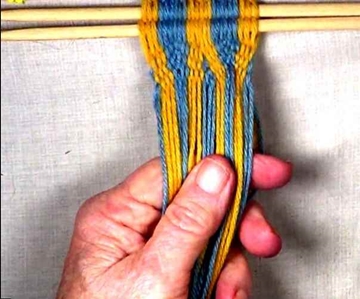

Row 3

  • Repeat the steps used for weaving Row 2.
[Figure-33] click here to see video

Previous: figure 32 Next: figure 34

Continue adding aditional rows of weaving until the work piece is the desired length.


[Figure-34]
