Warpface Fingerweaving --- Diagonal Pattern
Head stick variations

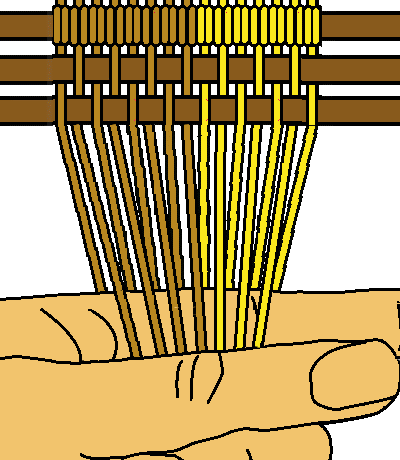

Headstick setup:
  • two colors
  • odd number of strands
  • first strand on right hand side in top layer
  • first strand on left hand side in top layer
  • Intro Figure 1

    Go to: Top of page Next figure 2

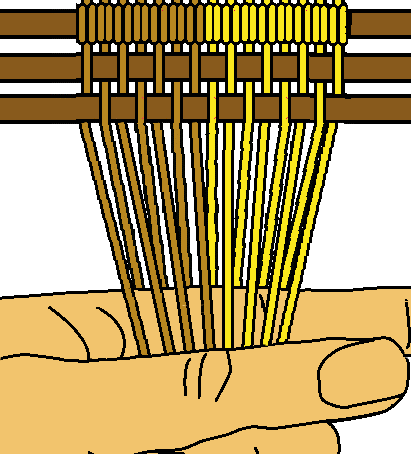

    Headstick setup:
  • two colors
  • odd number of strands
  • first strand on right hand side in bottom layer
  • first strand on left hand side in bottom layer
  • Intro Figure 2

    Previous figure 1 Next figure 3

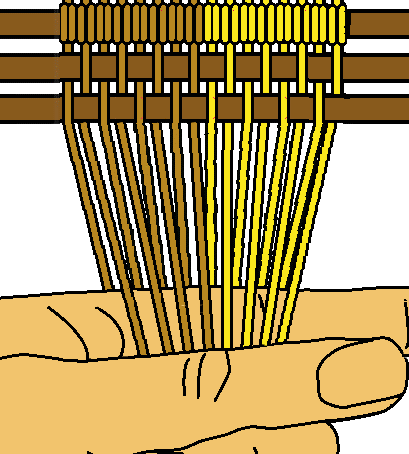

    Headstick setup:
  • two colors
  • even number of strands
  • first strand on right hand side in top layer
  • first strand on left hand side in bottom layer
  • Intro Figure 3

    Previous figure 2 Next figure 4

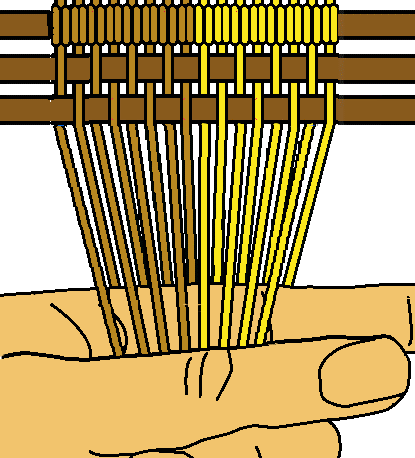

    Headstick setup:
  • two colors
  • even number of strands
  • first strand on right hand side in top layer
  • first strand on left hand side in bottom layer
  • Intro Figure 4

    Previous figure 3 Next figure 5

    NOTES:

    The differences between the four headstick setups are small but they must be considered when aditional bands of finger weaving are joined to make a wider work-piece.

    When a odd number of warp strands are used, the weft strands turn the same way on each end of the work-piece.

    When a even number of warp strands are used:
  • If the selected weft strand starts is in the bottom shed layer, the weft strand will become a warp strand in the top layer of the shed.
  • If the selected weft strand starts is in the top shed layer, the weft strand will become a warp strand in the bottom layer of the shed.
